IC Integrated Circuits BQ76200PWR TSSOP-16 Battery Management
Product Description:
The bq76200 device is a low-power, high-side, Nchannel system. A high-side protection avoids ground disconnection in the system and also allows continuous communication between the battery pack and host system. The device has additional PChannel FET control to allow low-current pre-charge to a deeply depleted battery, and a PACK+ voltage monitor control for the host to sense the PACK+ voltage. The independent enable inputs allow CHG and DSG FETs to be turned on and off separately, offering great implementation flexibility in battery systems. The bq76200 device can be used with a companion analog front end (AFE) device such as the bq76920/30/40 family, a 3-series to 15-series Cell Analog Front End Monitoring, and a host microcontroller or dedicated state-of-charge (SOC) tracking gas gauge device.
Application:
• eBikes, eScooters, and eMotorcycles • Energy storage systems and uninterruptible power supplies (UPS) • Portable medical systems • Wireless base-station battery systems • Lead acid (PbA) replacement batteries • 12-V to 48-V battery packs
Parameter Table:
| Product Attribute | Attribute Value |
| Manufacturer: | Texas Instruments |
| Product Category: | Battery Management |
| RoHS: | YES |
| Product: | Battery Protection |
| Output Voltage: | 14 V |
| Operating Supply Voltage: | 8 V to 75 V |
| Package / Case: | TSSOP-16 |
| Mounting Style: | SMD/SMT |
| Series: | BQ76200 |
| Brand: | Texas Instruments |
| Product Type: | Battery Management |
| Factory Pack Quantity: | 2000 |
| Subcategory: | PMIC - Power Management ICs |
FAQ:
No MOQ needed, and if you buy more, will enjoy better prices.
You can ask our staff for apply free samples.
- What payment methods do you support?
We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.
- What about the shipment methods?
We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.
- How will you Guaranteed quality?
Quality Warranty Period:12 Months.
- Are the products tested before shipment?
All products were tested before shipment, and the quality problems were negligible.
- Do you provide BOM services?
Yes, We provide one-stop purchase service, Please send us your Bom List
|
|

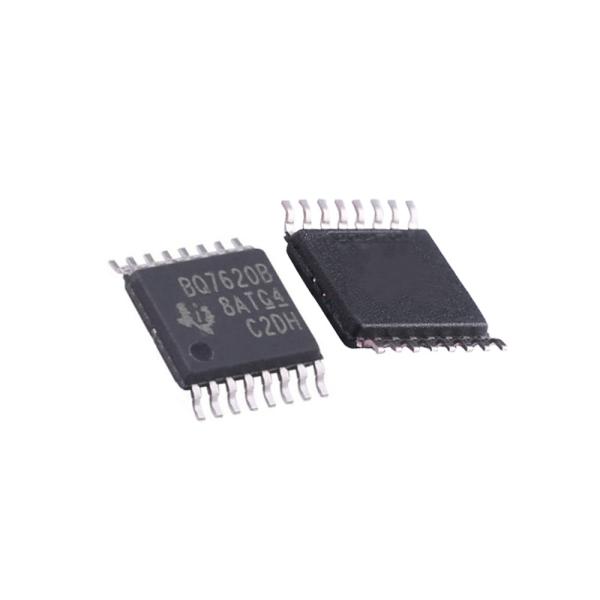

IC Integrated Circuits BQ76200PWR TSSOP-16 Battery Management Images
|
